EXTRUDERS single layer universal

Cat. No.	Product
KMT-MINI	HDPE/LDPE/LLDPE film extruder Model KMT-MINI Basic characteristic of KMT-MINI Raw material HDPE/LDPE/LLDPE Film thickness H: 0.008 ~ 0.1 mm L:0,015 - 0,2 mm Film width H: 550 mm L; 500 mm Output H: 15 - 38 kg/h L: 15 - 45 kg/h Screw diameter φ 35 mm

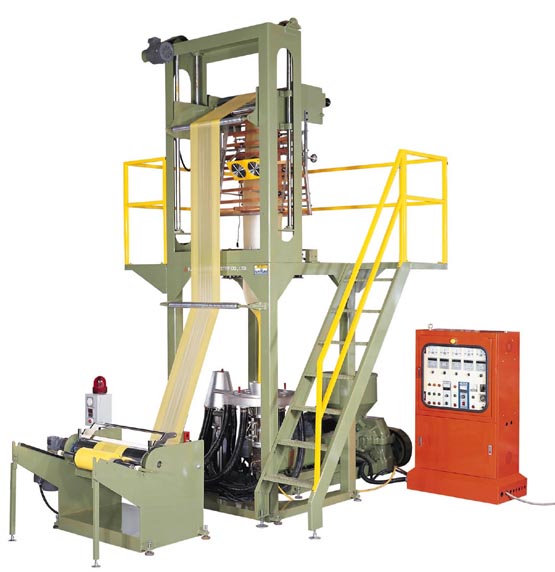

KMT-45	HDPE/LDPE/LLDPE film extruder Model KMT-45 Basic characteristic of KMT-45 Raw material HDPE/LDPE/LLDPE Film thickness H: 0.008 ~ 0.1 mm L:0,02 - 0,2 mm Film width H: 650 mm L; 650 mm Output H: 10 - 45 kg/h L: 20 - 55 kg/h Screw diameter φ 45 mm
KMT-55	HDPE/LDPE/LLDPE film extruder Model KMT-55 Basic characteristic of KMT-55 Raw material HDPE/LDPE/LLDPE Film thickness H: 0.01 ~ 0.1 mm L:0,025 - 0,2 mm Film width H: 900 mm L; 1000 mm Output H: 20 - 60 kg/h L: 30 - 72 kg/h Screw diameter φ 55 mm

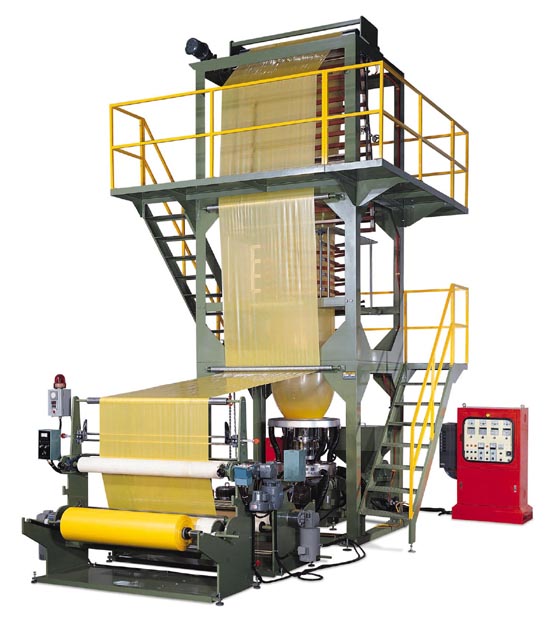

KMT-65	HDPE/LDPE/LLDPE film extruder Model KMT-65 Basic characteristic of KMT-65 Raw material HDPE/LDPE/LLDPE Film thickness H: 0.015 ~ 0.1 mm L:0,025 - 0,25 mm Film width max 1400 mm Output H: 30 - 90 kg/h L: 50 - 105 kg/h Screw diameter φ 65 mm

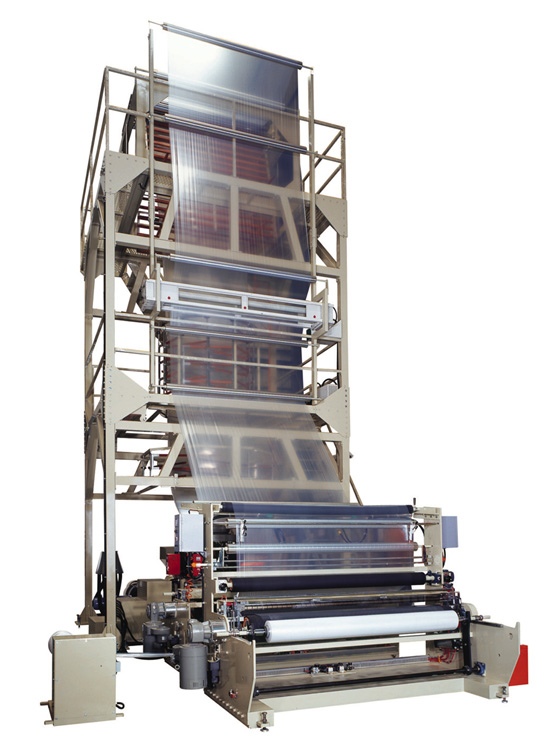

KMT-80	HDPE/LDPE/LLDPE film extruder Model KMT-80 Basic characteristic of KMT-80 Raw material HDPE/LDPE/LLDPE Film thickness H: 0.02 ~ 0.1 mm L:0,03 - 0,25 mm Film width max. 2000 mm Output H: 180 kg/h L: 200 kg/h Screw diameter φ 80 mm
