EXTRUDERS single layer HDPE



Cat. No.	Product

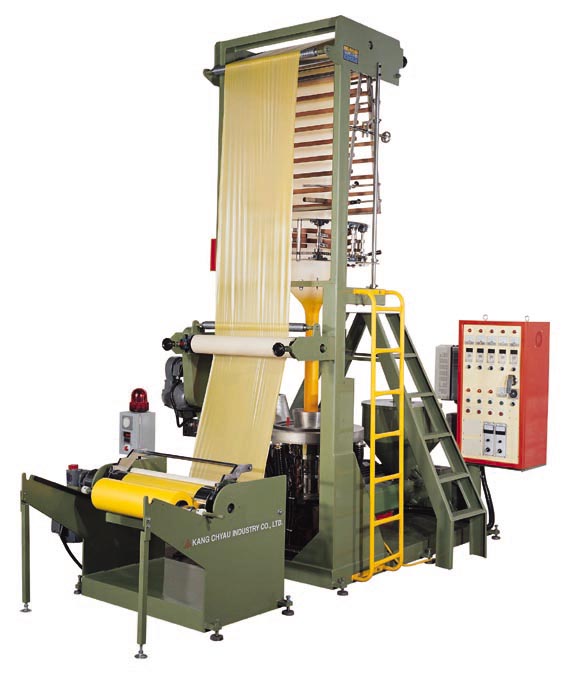

KMH-40U	HDPE film extruder Model KMH-40U Basic characteristic of KMH-40U Raw material HDPE Film thickness 0.008 ~ 0.1 mm Film width max. 650 mm Output 10 ~ 40 kg/h Screw diameter φ 40 mm

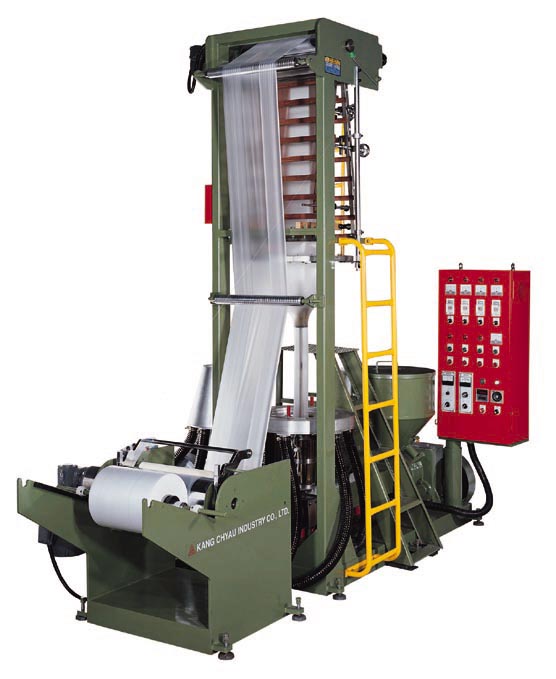

KMH-35	HDPE film extruder Model KMH-35 Basic characteristic of KMH-35 Raw material HDPE Film thickness 0.008 ~ 0.10 mm Film width max.  400 mm Output 10 - 28  kg/h Screw diameter φ 35 mm
KMH-45	HDPE film extruder Model KMH-45 Basic characteristic of KMH-45 Raw material HDPE Film thickness 0.008 ~ 0.1 mm Film width max.  650 mm Output 10 ~ 42 kg/h Screw diameter φ 45 mm
KMH-MINI	HDPE film extruder Model KMH-MINI Basic characteristic of KMH-MINI Raw material HDPE Film thickness 0.008 ~ 0.1 mm Film width max.  550 mm Output 15 ~ 32 kg/h Screw diameter φ 40 mm

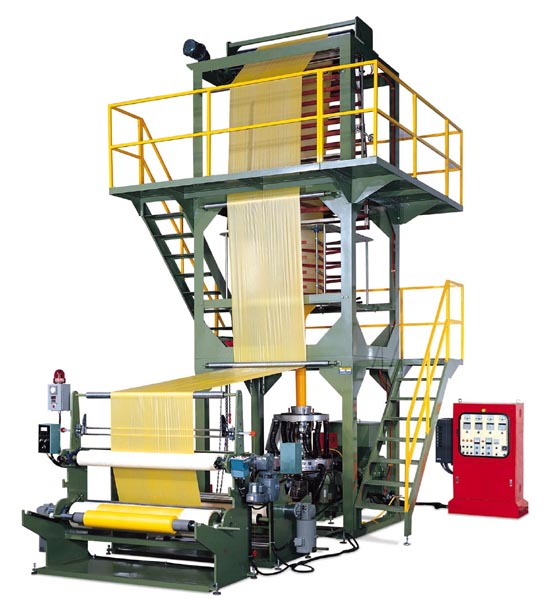

KMH-65	HDPE film extruder Model KMH-65 Basic characteristic of KMH-65 Raw material HDPE Film thickness 0.008 ~ 0.1 mm Film width max.  1400 mm Output 20 ~ 80 kg/h Screw diameter φ 65 mm

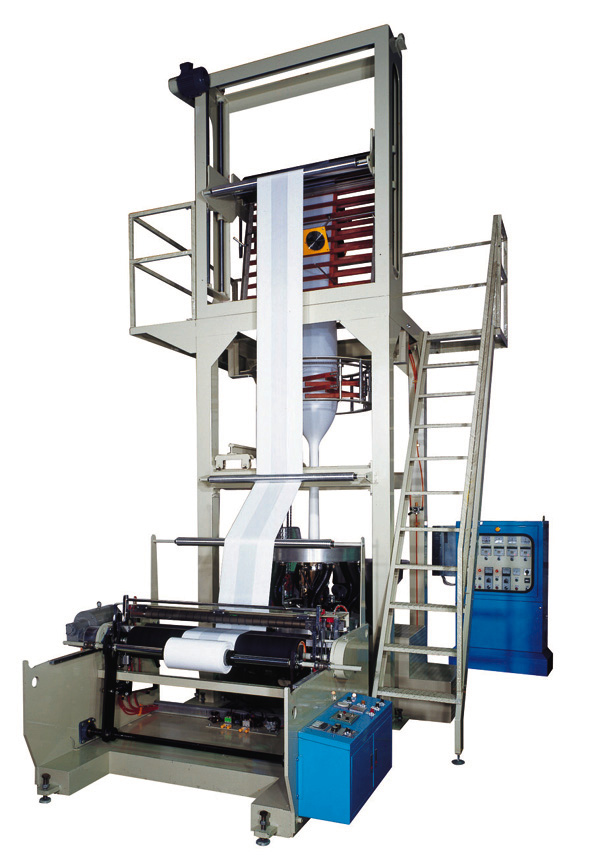

KMH-45S	HDPE film extruder Model KMH-45S Basic characteristic of KMH-45S Raw material HDPE Film thickness 0.008 ~ 0.15 mm Film width max.  660 mm Output max 75  kg/h Screw diameter φ 45 mm

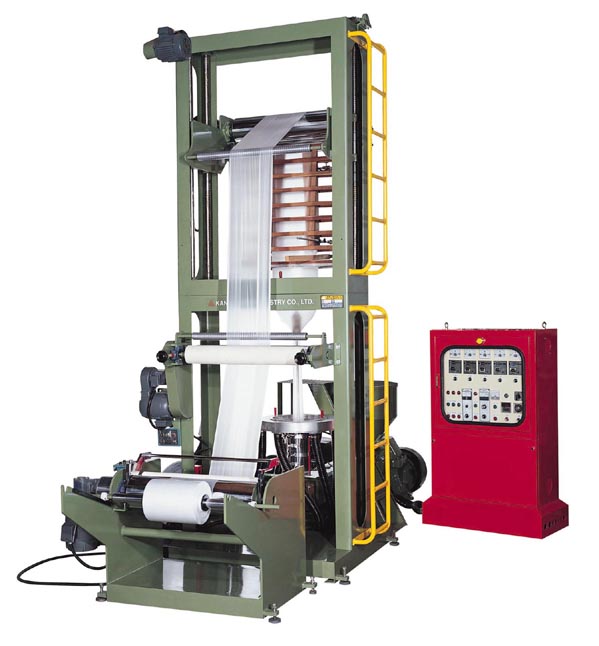

KMH-55	HDPE film extruder Model KMH-55 Basic characteristic of KMH-55 Raw material HDPE Film thickness 0.008 ~ 0.1 mm Film width max. 900 mm Output 20 ~ 60 kg/h Screw diameter φ 55 mm
